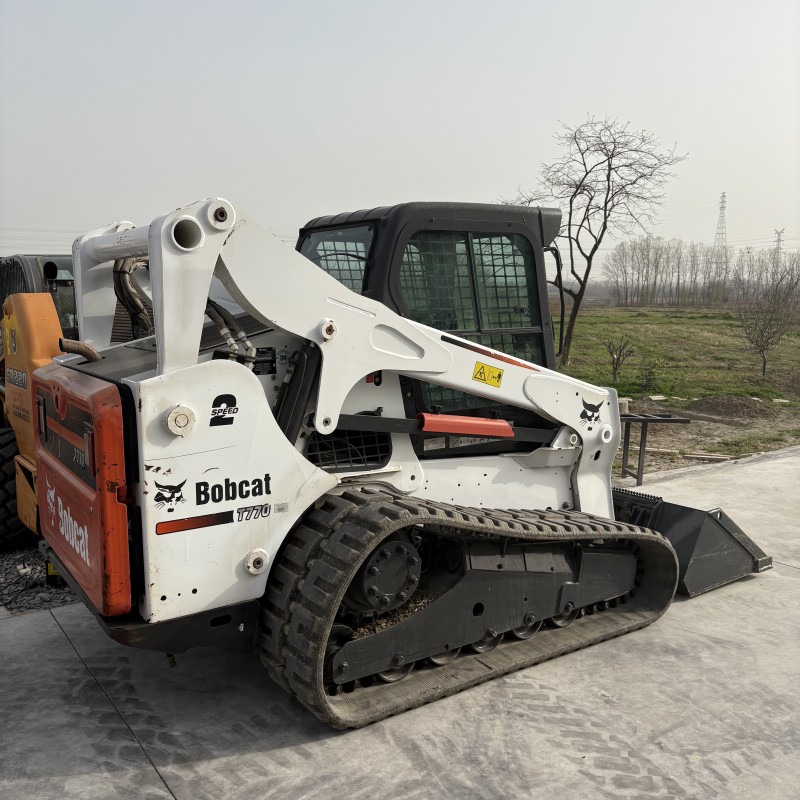

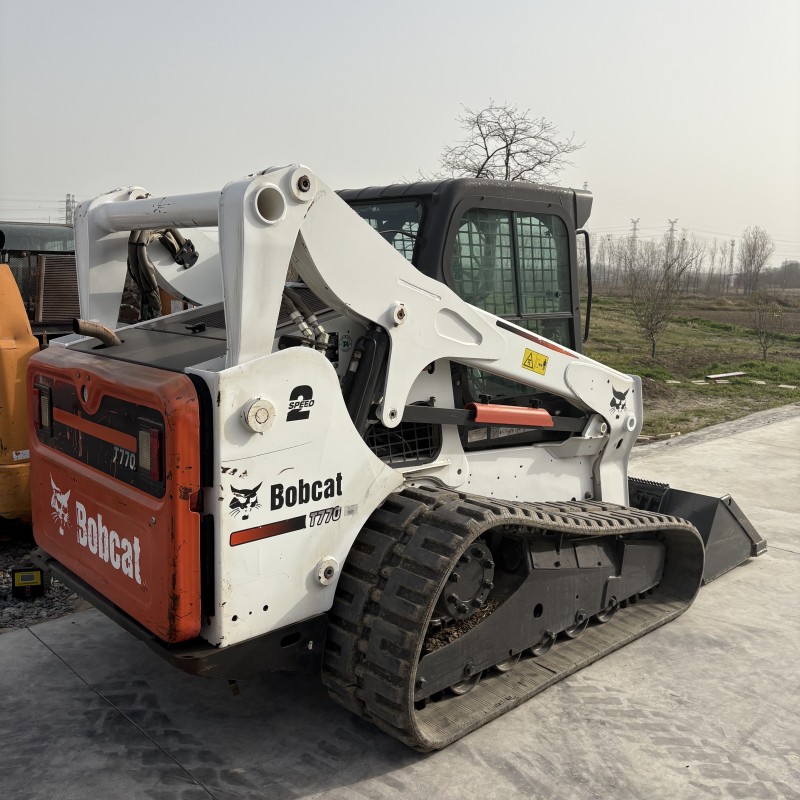

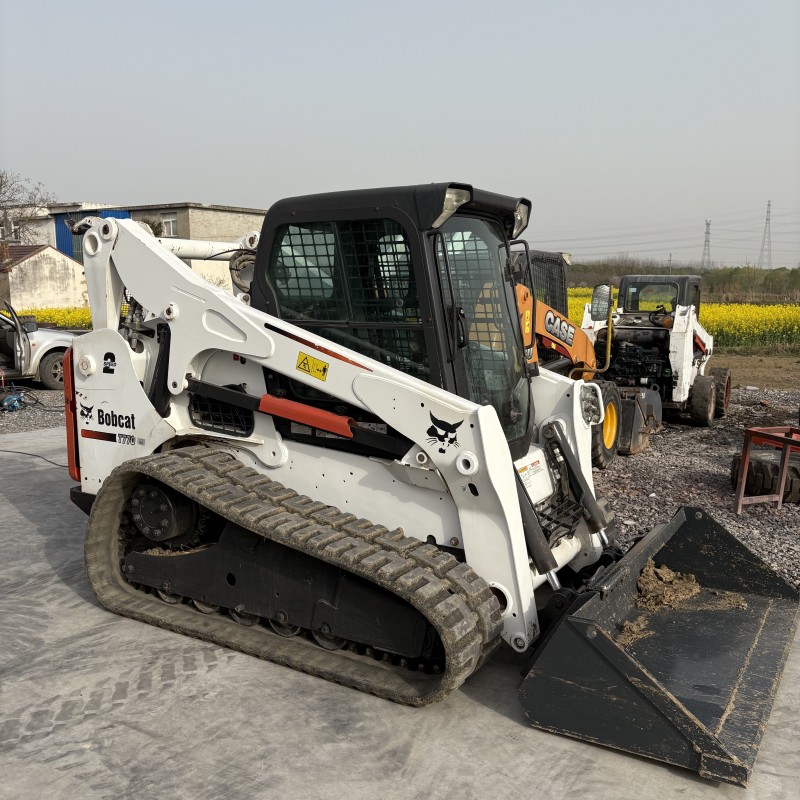

BOBCAT T770 Skid Steer Loader

For More Information and Pricing:

Read Product Description or Contact us Directly through Email, WhatsApp or Direct Calls.

Thank you…

Category	Specification
Manufacturer / Model	BOBCAT T770
Engine	Cat C3.3B DIT (Turbo), 4-cylinder diesel
Gross Power	74.3 HP (≈ 55.4 kW)
Net Power	~72.9 HP (≈ 54.4 kW)
Rated Operating Capacity (ROC / 50-%)	2,700 lbs (≈ 1,225 kg)
Tipping Load	5,400 lbs (≈ 2,450 kg)
Breakout Force (Tilt Cylinder)	7,355 lbs (≈ 3,336 kg)
Operating Weight	8,011 lbs (≈ 3,634 kg)
Fuel Tank Capacity	~24.9 gallons (≈ 94 L)
Hydraulic System	Standard & high-flow options; Standard flow ~23 gal/min (≈ 86 L/min), High-flow XPS ~32 gal/min (≈ 121 L/min); System pressure ~3,335 psi standard, ~4,061 psi with high-flow.
Travel Speed	Forward & reverse ~7.7 mph (~12.4 km/h); optional 2-speed mode up to ~11 mph (~17.8 km/h)
Dimensions	• Wheelbase: ~49.2 in (1,249 mm) • Length w/ bucket (on ground): ~146.2 in (3,713 mm) • Length without bucket: ~117.9 in (2,995 mm) • Height top of cab: ~83.1 in (2,110 mm) • Vehicle width over tires: ~66 in (1,676 mm) • Bucket pin height at maximum lift: ~124.9 in (3,170 mm) • Maximum overall height: ~157.8 in (4,008 mm) • Reach at max lift & dump: ~30.9 in (785 mm) • Ground clearance: ~8.9 in (226 mm)
